IPv6 Support in CloudStack

CloudStack supports Internet Protocol version 6 (IPv6), the recent version of the Internet Protocol (IP) that defines routing the network traffic. IPv6 uses a 128-bit address that exponentially expands the current address space that is available to the users. IPv6 addresses consist of eight groups of four hexadecimal digits separated by colons, for example, 5001:0dt8:83a3:1012:1000:8s2e:0870:7454. CloudStack supports IPv6 for shared and isolated networks. It also supports IPv6 for VPC tiers.

Shared network

With IPv6 support, VMs in shared networks can obtain both IPv4 and IPv6 addresses from the DHCP server. You can deploy VMs either in a IPv6 or IPv4 network, or in a dual network environment. If IPv6 network is used, the VM generates a link-local IPv6 address by itself, and receives a stateful IPv6 address from the DHCPv6 server.

IPv6 is supported only on KVM and XenServer hypervisors. The IPv6 support is only an experimental feature.

Here’s the sequence of events when IPv6 is used:

  1. The administrator creates an IPv6 shared network in an advanced zone.

  2. The user deploys a VM in an IPv6 shared network.

  3. The user VM generates an IPv6 link local address by itself, and gets an IPv6 global or site local address through DHCPv6.

Prerequisites and Guidelines

Consider the following:

  • CIDR size must be 64 for IPv6 networks.

  • The DHCP client of the guest VMs should support generating DUID based on Link-layer Address (DUID- LL). DUID-LL derives from the MAC address of guest VMs, and therefore the user VM can be identified by using DUID. See Dynamic Host Configuration Protocol for IPv6for more information.

  • The gateway of the guest network generates Router Advisement and Response messages to Router Solicitation. The M (Managed Address Configuration) flag of Router Advisement should enable stateful IP address configuration. Set the M flag to where the end nodes receive their IPv6 addresses from the DHCPv6 server as opposed to the router or switch.

    Note

    The M flag is the 1-bit Managed Address Configuration flag for Router Advisement. When set, Dynamic Host Configuration Protocol (DHCPv6) is available for address configuration in addition to any IPs set by using stateless address auto-configuration.

  • Use the System VM template exclusively designed to support IPv6. Download the System VM template from http://download.cloudstack.org/systemvm/.

  • The concept of Default Network applies to IPv6 networks. However, unlike IPv4 CloudStack does not control the routing information of IPv6 in shared network; the choice of Default Network will not affect the routing in the user VM.

  • A shared network cannot be IPv6 only. Therefore, it is necessary to configure the IPv4 address range for the shared network with IPv6 addresses. The IPv4 range can be of a public or internal IPv4 network.

  • In a multiple shared network, the default route is set by the rack router, rather than the DHCP server, which is out of CloudStack control. Therefore, in order for the user VM to get only the default route from the default NIC, modify the configuration of the user VM, and set non-default NIC’s accept_ra to 0 explicitly. The accept_ra parameter accepts Router Advertisements and auto-configure /proc/sys/net/ipv6/conf/interface with received data.

Limitations

The following are not yet supported:

  1. Security groups

  2. Userdata and metadata

  3. Passwords

Guest VM Configuration for DHCPv6

For the guest VMs to get IPv6 address, run dhclient command manually on each of the VMs. Use DUID-LL to set up dhclient.

Note

The IPv6 address is lost when a VM is stopped and started. Therefore, use the same procedure to get an IPv6 address when a VM is stopped and started.

  1. Set up dhclient by using DUID-LL.

    Perform the following for DHCP Client 4.2 and above:

    1. Run the following command on the selected VM to get the dhcpv6 offer from VR:

      dhclient -6 -D LL <dev>


    Perform the following for DHCP Client 4.1:

    1. Open the following to the dhclient configuration file:

      vi /etc/dhcp/dhclient.conf

    2. Add the following to the dhclient configuration file:

      send dhcp6.client-id = concat(00:03:00, hardware);

  2. Get IPv6 address from DHCP server as part of the system or network restart.

    Based on the operating systems, perform the following:

    On CentOS 6.2:

    1. Open the Ethernet interface configuration file:

      vi /etc/sysconfig/network-scripts/ifcfg-eth0


      The ifcfg-eth0 file controls the first NIC in a system.

    2. Make the necessary configuration changes, as given below:

      DEVICE=eth0
      HWADDR=06:A0:F0:00:00:38
      NM_CONTROLLED=no
      ONBOOT=yes
      BOOTPROTO=dhcp6
      TYPE=Ethernet
      USERCTL=no
      PEERDNS=yes
      IPV6INIT=yes
      DHCPV6C=yes

    3. Open the following:

      vi /etc/sysconfig/network

    4. Make the necessary configuration changes, as given below:

      NETWORKING=yes
      HOSTNAME=centos62mgmt.lab.vmops.com
      NETWORKING_IPV6=yes
      IPV6_AUTOCONF=no


    On Ubuntu 12.10

    1. Open the following:

      etc/network/interfaces:

    2. Make the necessary configuration changes, as given below:

      iface eth0 inet6 dhcp
      autoconf 0
      accept_ra 1


Isolated network and VPC tier

Note

  • The IPv6 support for isolated networks and VPC tiers is available from version 4.17.0.

  • The IPv6 isolated networks and VPC tiers only supports Static routing, i.e, the administrator will need to add upstream routes for routing to work inside the networks.

  • IPv6 only isolated networks and VPC tiers are not supported currently. Public network for IPv6 supported isolated networks and VPC tiers must be on the same VLAN for both IPv4 and IPv6.

Guest VMs in an isolated network or VPC tier can obtain both IPv4 and IPv6 IP addresses by using a supported network offering and appropriate configurations for IPv6 support by the administrator. Both VR for such networks and the guest VMs using these networks obtain a SLAAC based IPv6 address. While VR is assigned an IPv6 address from the public IPv6 range, guest VMs get their IPv6 addresses from the IPv6 subnet assinged to the network.

Here’s the sequence of events when IPv6 is used:

  1. The administrator sets global configuration - ipv6.offering.enabled to true.

  2. The administrator adds a public IPv6 range in an advanced zone.

  3. The administrator adds an IPv6 prefix for guest traffic type for the zone.

  4. The administrator creates a network or VPC offering with IPv4 + IPv6 (Dual stack) support.

  5. The user deploys an isolated network with the IPv6 supported network offering. For VPC, user creates a VPC with IPv6 supported VPC offering and then deploys a network tier with IPv6 supported network offering.

  6. CloudStack assigns a SLAAC based public IPv6 address to the network from the public IPv6 range of the zone. It also assigns an IPv6 subnet to the network from the guest IPv6 prefix for the zone. See SLAACfor more information.

  7. The user deploys a guest VM in the network. The VM is assigned a SLAAC based IPv6 address from the guest IPv6 subnet of the network.

Prerequisites and Guidelines

Consider the following:

  • CIDR size for the public IPv6 range for a zone must be 64.

  • CIDR size for the guest IPv6 prefix for the zone must be lesser than 64. Each guest network is assigned a subnet from this prefix with CIDR size 64 therefore only as many IPv6 supporting guest networks can be deployed from the guest prefix as the number of subnets with CIDR size 64.

  • Currently, a guest network cannot be IPv6 only and it can only be either IPv4 only or Dual Stack (both IPv4 + IPv6).

  • Once a public IPv6 address and guest subnet are assigned to the network or the network is successfully, the operator must update routing in the upstream router. For this, CloudStack returns the gateway and subnet for the network with listNetworks API response.

Adding a Public IPv6 Range

The administrator can use both UI and API to add a public IPv6 range. UI is the preferable option. Option to add a new public IPv6 range in the UI can be found in Infrastructure > Zones > Zone details > Physical Network tab > Physical network details > Traffic Types tab > Public > Add IP range. In the Add IP range form, IPv6 can be selected as the IP Range Type. IPv6 Gateway and CIDR must be provided and optionally a VLAN/VNI can be provided.

Alternatively, createVlanIpRange API can be used to add a new public IPv6 range.

Add Public IPv6 Range form.

Note

  • The public IPv6 address range or CIDR must be added with same VLAN as that of public IPv4 address range.

  • As SLAAC based public IPv6 addresses will be assigned to the networks therefore public IPv6 range must be added without specifying start and end IP addresses.

Adding Guest IPv6 Prefix

Again, both UI and API to add a guest IPv6 prefix. UI is the preferable option. Option to add a new public Ipv6 range in the UI can be found in Infrastructure > Zones > Zone details > Physical Network tab > Physical network details > Traffic Types tab > Guest > Add IPv6 prefix. In the Add IPv6 prefix form, an IPv6 prefix with CIDR size lesser than 64 must be provided.

Alternatively, createGuestNetworkIpv6Prefix API can be used to add a new guest IPv6 prefix.

Add Guest IPv6 Prefix form.

Adding Network or VPC Offering with IPv6 Support

To create an IPv6 suported network or VPC offering, global configuration - ipv6.offering.enabled must be set to true.

With 4.17.0, a new paramter - internetprotocol has been added to:
  • the createNetworkOffering API which can be used to create a network offering with IPv6 support by using the value dualstack.

  • the createVPCOffering API which can be used to create a VPC offering with IPv6 support by using the value dualstack.

Corresponding option has also been provided in the UI form creating network/VPC offering:

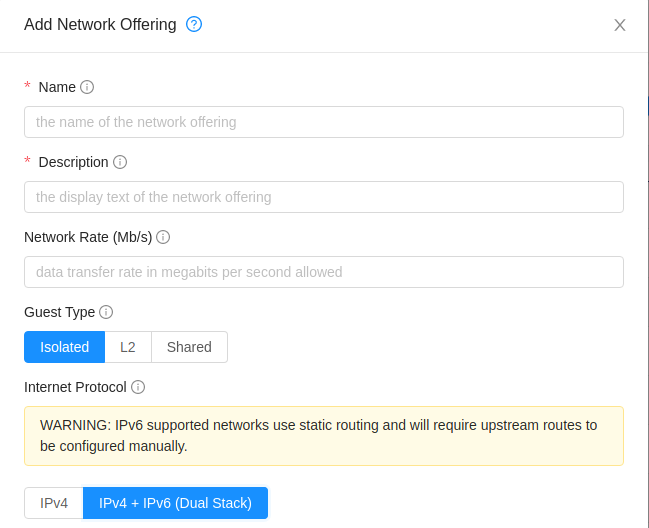

Add IPv6 supported Network Offering form.

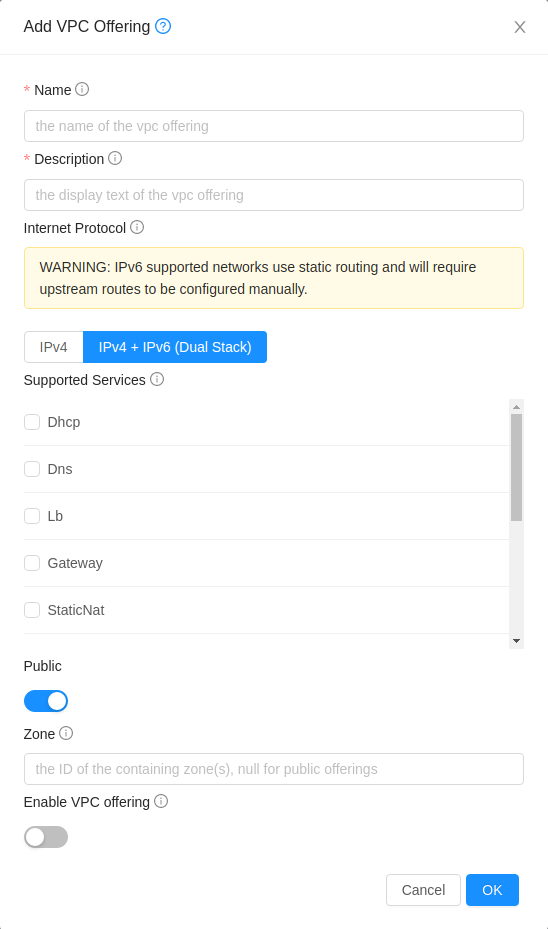

Add IPv6 supported VPC Offering form.

Adding Upstream Route

Currently, CloudStack supports IPv6 isolated networks and VPC tiers only with static routes and therefore the administrator needs to add upstream IPv6 routes once a network is successfully deployed. To facilitate the automation, CloudStack Event Notification can be used. CloudStack will generate appropriate events on network creation or deletion and while assigning or releasing a public IPv6 address for a network. Based on the events the corresponding network can be queried for the IPv6 routes that it needs configured in upstream network. Upstream IPv6 routes required by an IPv6 supported isolated network or VPC tier are also shown in the UI in the network details.

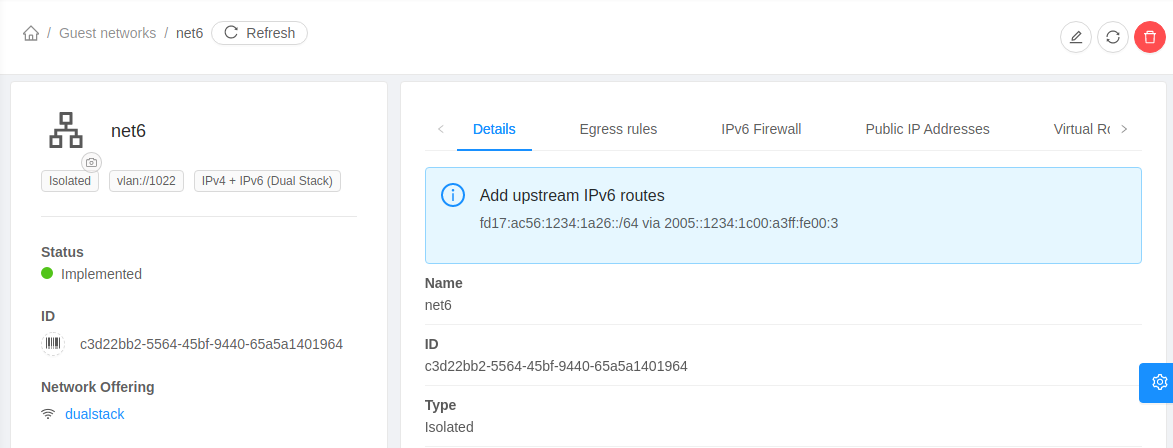

Upstream IPv6 routes in network details.

IPv6 Firewall

For using and managing firewall rules with an IPv6 supported isolated network, CloudStack provides following APIs:

  • listIpv6FirewallRules - To list existing IPv6 firewall rules for a network.

  • createIpv6FirewallRule - To create a new IPv6 firewall rules for a network.

  • updateIpv6FirewallRule - To update an exisitng IPv6 firewall rules for a network.

  • deleteIpv6FirewallRule - To delete an exisitng IPv6 firewall rules for a network.

These operations are also available using UI in the network details view of an IPv6 supported network.

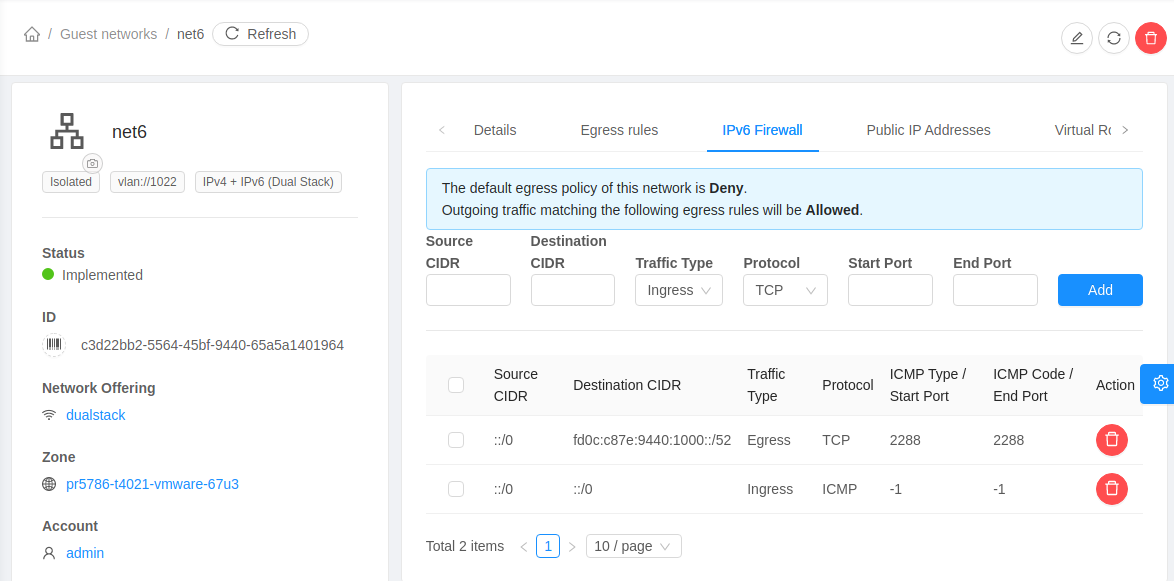

IPv6 Firewall management in network details.

IPv6 ACL

IPv6 ACL rules for an IPv6 supported VPC network tier can be managed using Network ACL lists for the VPC. IPv6 CIDRs can be specified while adding or updating an ACL rule.

Add IPv6 ACL rule. IPv6 ACL rule in Network ACL list.
